CNC Equipment

/ 4 & 5 AXIS MACHINING CENTERS

With automation for 24/7 lights-out production

HEI Matsuura-MAM-72-35V

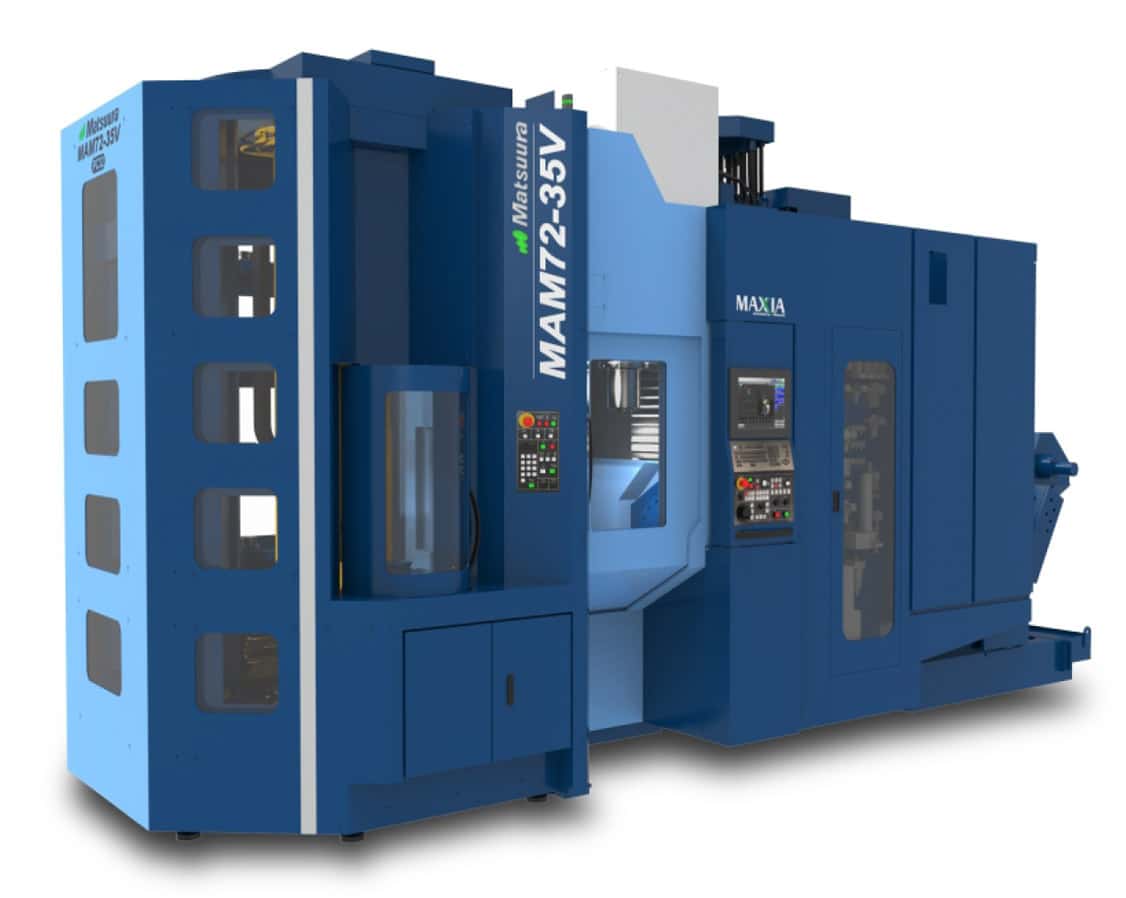

(2) Matsuura MAM 72-35V 5-Axis
Spindle Speed: 20,000 RPM
Automation: 32 Pallet Pool
Work envelope: 12″ Ø x 11″ tall (302mm Ø x 280mm tall)

HEI-Matsuura-H-Plus-300-Horizontal

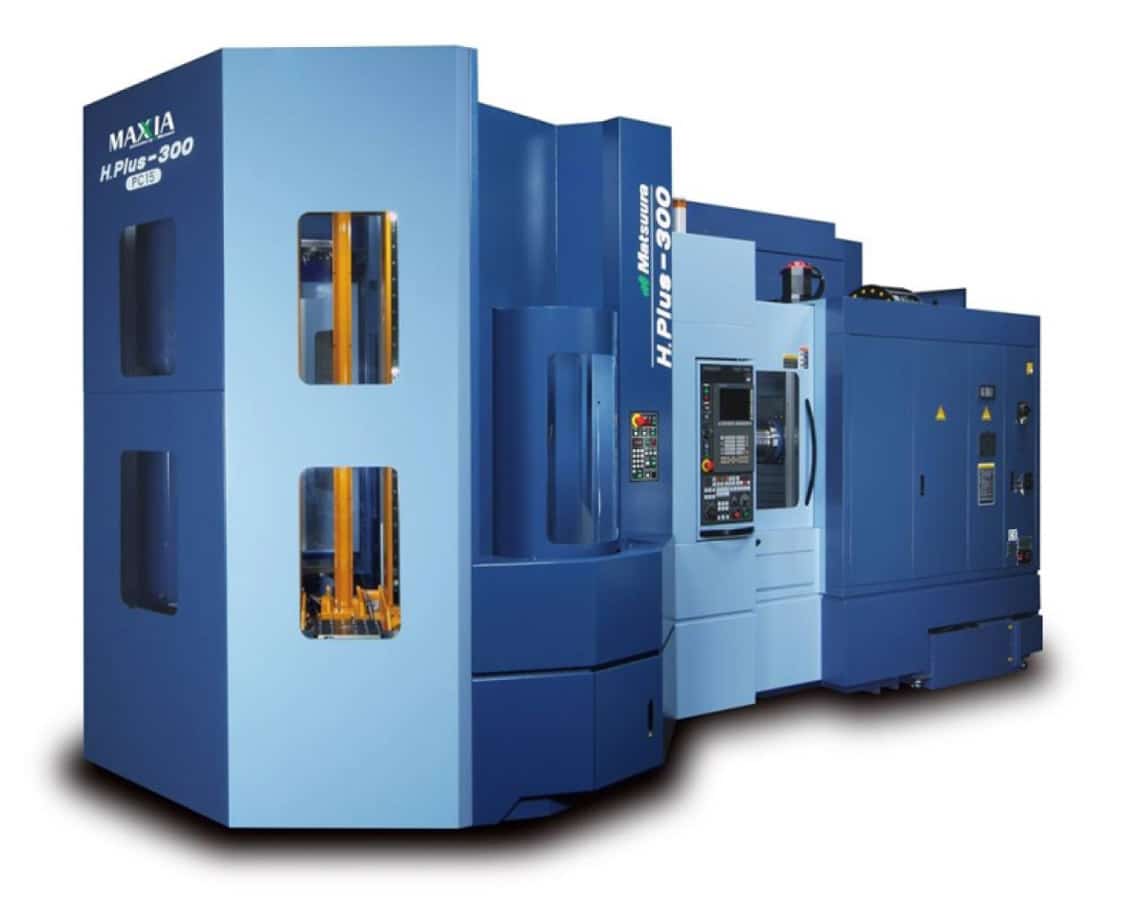

(1) Matsuura H-Plus 300 Horizontal 4- Axis
Spindle Speed: 20,000 RPM
Automation: 15 Pallet Pool
Work envelope: 12″ Ø x 11″ tall (302mm Ø x 280mm tall)

/ 3 AXIS MACHINING CENTERS

With automation for 24/7 lights-out production

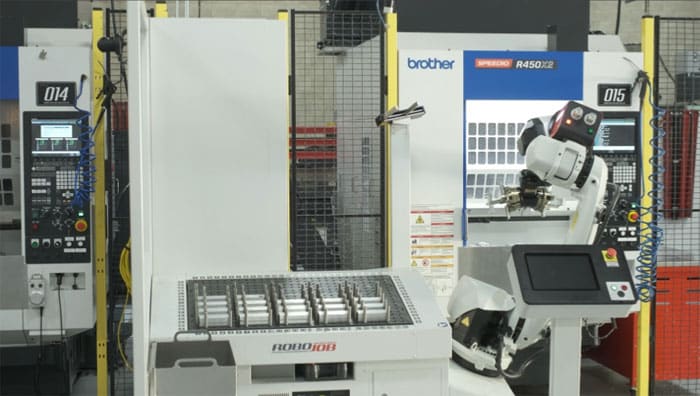

(2) Brother R-450 Vertical 3-Axis
Spindle Speed: 16,000 RPM
Automation: Robojob load/unload – Two Pallet
Work envelope (X,Y,Z): 6.5″ (165mm) x 3″ (76mm) x 2″ (51mm)

(2) Brother R-650 Vertical 3-Axis
Spindle Speed: 16,000 RPM
Automation: Two Pallet
Work envelope (X,Y,Z): 20″ (508mm) x 10″ (254mm) x 6″ (153mm)

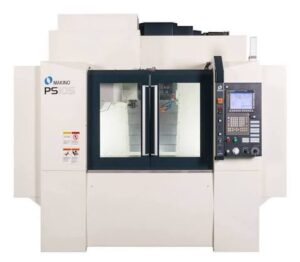

(1) Makino PS105-2 3-Axis
Spindle Speed: 14,000rpm
Work Envelope (X,Y,Z): 36″ (914mm) x 16″ (406mm) x 8″ (203mm)

/ MULTI-AXIS TURNING CENTERS

With automation for 24/7 lights-out production

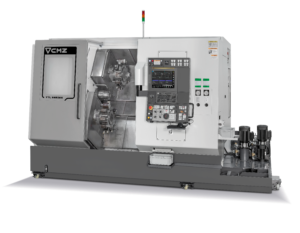

(1) CMZ TTL
Diameter thru spindle: 2.6” Max Bar Capacity
8.3” Main & Sub Spindle Chucks
Two 12 Station Turrets with Y Axis (±45 mm), 12,000 rpm live tooling
Automation: LNS Bar feeder

(2) DN Solutions Puma 2600 SY II
Diameter thru spindle: 3.0” Max Bar Capacity
Maximum Turning Diameter: 14”
Maximum Turning Length: 20”
10” Main Spindle Chuck + 8” Sub Spindle
12 Station Turret with Y Axis
Automation: LNS Bar feeder

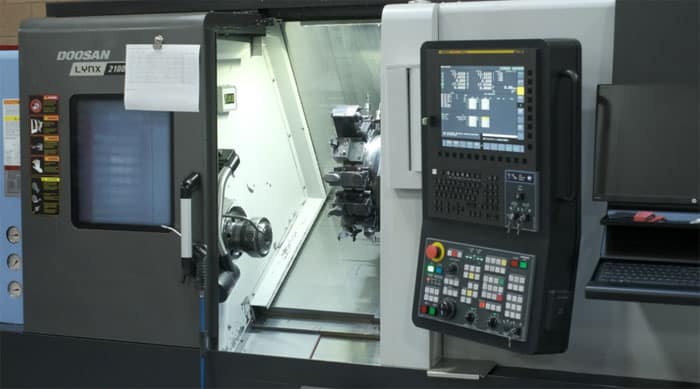

(2) DN Solutions Lynx 2100 SY
Diameter thru spindle: 2.625” Max Bar Capacity
Maximum Turning Diameter: 8” Main Spindle Chuck + 6” Sub Spindle
Maximum Turning Length: 12 Station Turret with Y Axis
Automation: LNS Bar feeder

+ POST PROCESSING

HEI Precision offers extensive value-added services to help customers streamline their process. Our services include a variety of finishing options, heat treating, testing, laser/part marking, assembly, packaging & labeling.

$

Anodize

$

Paint

$

Plating

$

Chem Film

$

Passivation

$

Black Oxide

INSPECTION EQUIPMENT

Aberlink CMM
Axis Travel (X,Y,Z): (640, 900, 500 mm / 25, 35, 19 in)
Renishaw 5 axis head

Mitutoyo 14” Optical Comparator

Fowler Trimos Height Gauge

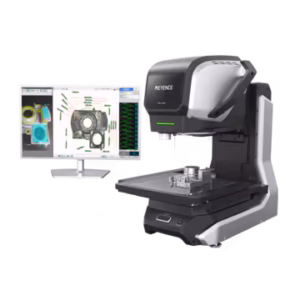

Keyence IM-X1000 Series Measurement System

SOFTWARE

Efficient project management: Ensures your orders are tracked and delivered on time with streamlined scheduling and workﬂow automation.
Flawless traceability: Every part, material, and tool is tracked in realtime, guaranteeing high-quality results and compliance with industry standards.
Enhanced productivity: By reducing administrative tasks, we focus on producing your parts with greater precision and speed.

Digital Production Quality Planning (PQP) System

Digital Production Quality Planning (PQP) System
Streamlines processes, from ballooning and inspection plans to FAI/APQP/PPAP, ensuring on-time, on-budget, and on-quality production.
Reduced errors: Seamless integration between design and inspection minimizes mistakes, delivering reliable results.

Optimized machining efficiency: Industry-leading toolpath strategies reduce production time while maintaining exceptional quality.
Precision craftsmanship: Advanced capabilities allow us to handle complex geometries and deliver even the most intricate designs.
Versatile expertise: Compatible with a wide range of CNC machines, ensuring your project is handled with the best tools for the job.

Fast and efficient programming: Reduces setup time, ensuring your parts move quickly from design to production.

Tailored solutions for your needs: Customizable capabilities allow us to adapt to your project’s unique requirements.

Seamless workflows: Automated processes mean more consistent results and quicker turnaround times for your orders.

Streamlined processes: An intuitive interface ensures efficient production and accurate execution of even the most complex parts.
Multi-axis machining mastery: Delivers superior quality for parts with intricate geometries and challenging features.
Flawless integration: Ensures your project moves seamlessly from design to production for a hassle-free experience.

Detailed and precise design: Your parts are crafted using cutting-edge CAD modeling to ensure the highest accuracy.
Seamless design-to-production workﬂow: Integrated with advanced CAM tools to bring your designs to life efficiently.
Error-free execution: Simulation tools catch potential issues before machining begins, saving time and materials.

Perfected accuracy: Advanced veriﬁcation ensures ﬂawless machining and error-free results.
Customized precision: Tailors machining strategies to suit the specific needs of your project and CNC equipment.
Faster delivery: Minimizes setup and debugging times, so your parts are ready when you need them.

Industry Standard: written by engineers for engineers and sets the industry standard for ease of use
Real-time quality assurance: Immediate feedback ensures every part meets your exact standards, reducing delays and rework.
Reliability: Aberlink creates CMM programs offline for improved efficiency.
